Description

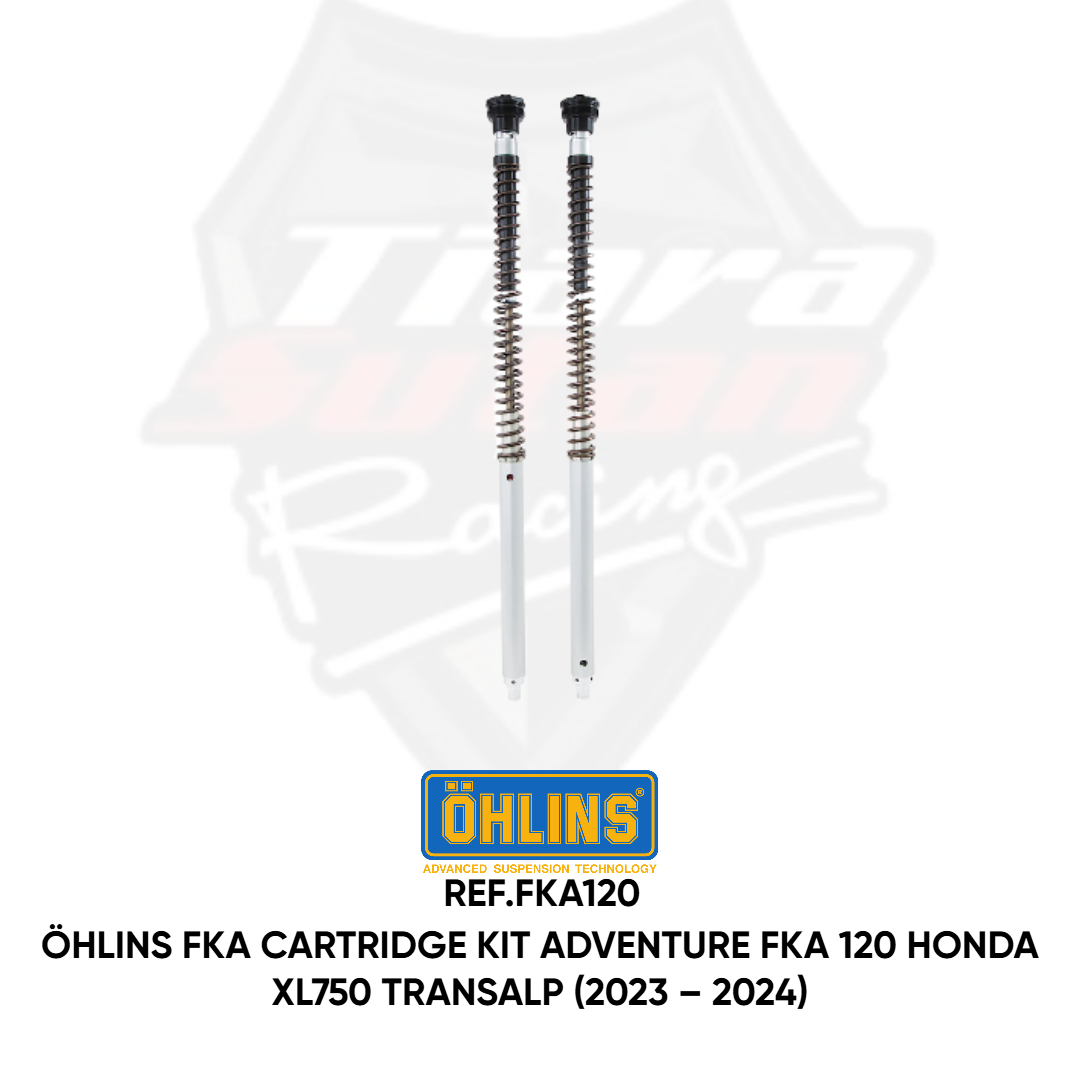

Based on the well proven NIX technology from our Road & Track product line, Öhlins developed the FKA cartridge kits for Adventure Bikes improving these in terms of comfort and overall performance.
Thanks to the FKA cartridge kits from Öhlins the bike now has a fully adjustable front end. Rebound damping is on one leg and compression in the other leg, with adjustable spring preload in both legs. Different springs are available for riders individual demands as well as an effective hydraulic stop inside the kit to prevent bottoming.
Front fork springs and oil need to be ordered separately. Spring rate recommendations can be found in the mounting instruction.
Technical data
Length: 872 mm
Stroke: 200 mm
Position: front
Spring series: 08424-series
Recommended oil: 01309-01
Oil level mm: 100
Oil volume: 500
Packaging unit: pair
