Description

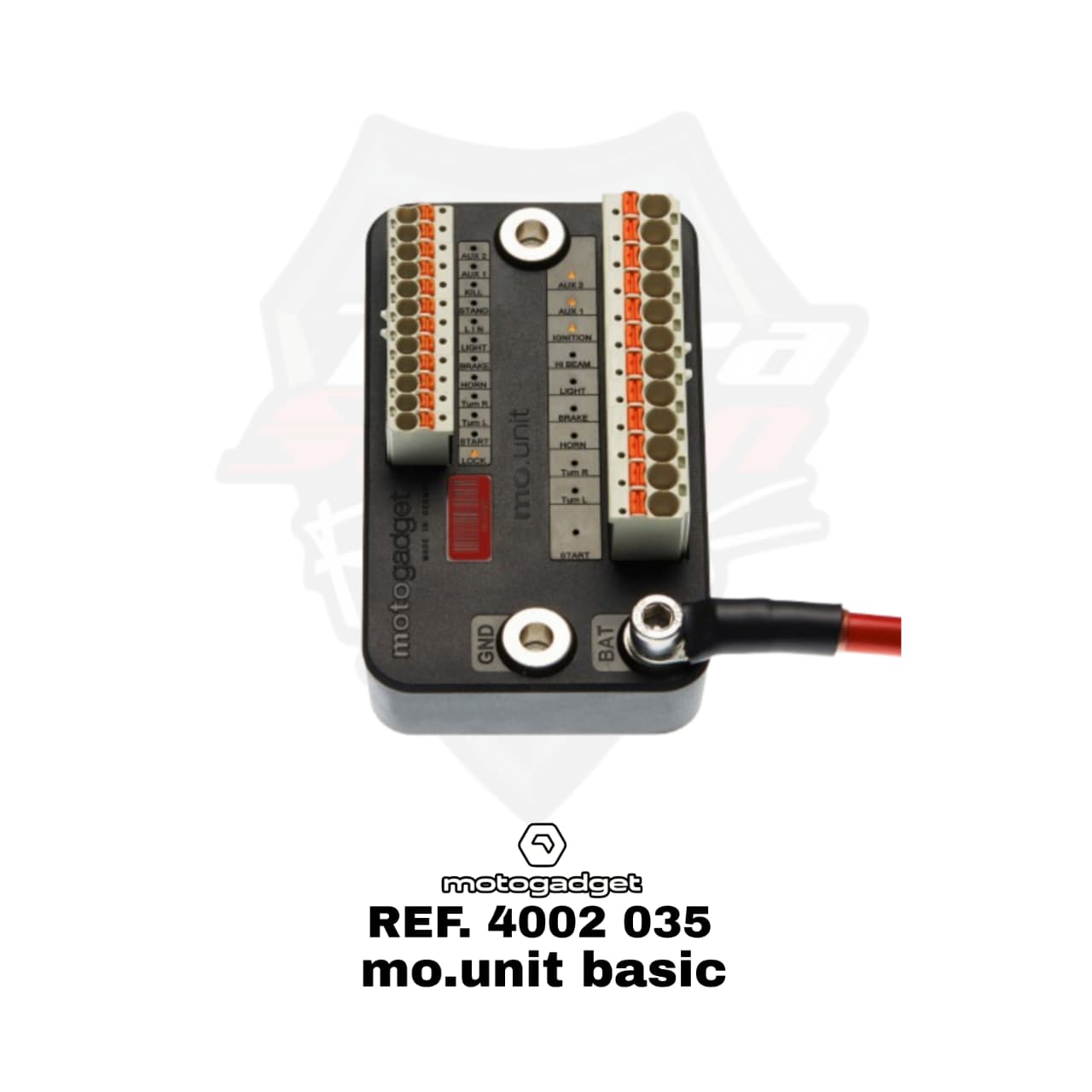

The mo.unit basic is a digital control center, the heart of the entire vehicle electrical system. It can be operated both with push-button fittings and with conventional, switching handlebar fittings. The mo.unit basic
switches all components in the vehicle via wear-free high-performance
semiconductor switches and takes over the tasks of the electrical fuses.
Various relays, connectors and individual components in the wiring harness can be
and a new, minimized vehicle wiring system can be set up quickly and easily.
The mo.unit basic has 12 inputs, 10 outputs and interchangeable
interchangeable quality cable terminals.
Functions
Push-button control for 4 or 5-button operation
Replacement of the vehicle fuses
Alarm system
Load-independent flasher relay
Hazard warning lights
Blinker as position light (adjustable)
Time-controlled blinker switch-off
Path-controlled turn signal deactivation (speedometer sensor required)
Parking light and headlight flasher
Control of low beam and high beam with one button
Stop light modulator (8 adjustable modes)
Emergency stop light
Garage light
Fan run-on
Hyperbeam (200W high beam + low beam)
Starter relay for starter with magnetic switch (max. 30 A)
Intelligent switch-off of consumers at startup
Integrated, digital horn relay
Two configurable additional outputs AUX1 and AUX2
Complete wiring system diagnostic function
Defect detection of all light sources
