Description
Contactless, digital ignition lock. Offers maximum security and convenience for your motorcycle. No more keys required after installation. Please order cable separately.

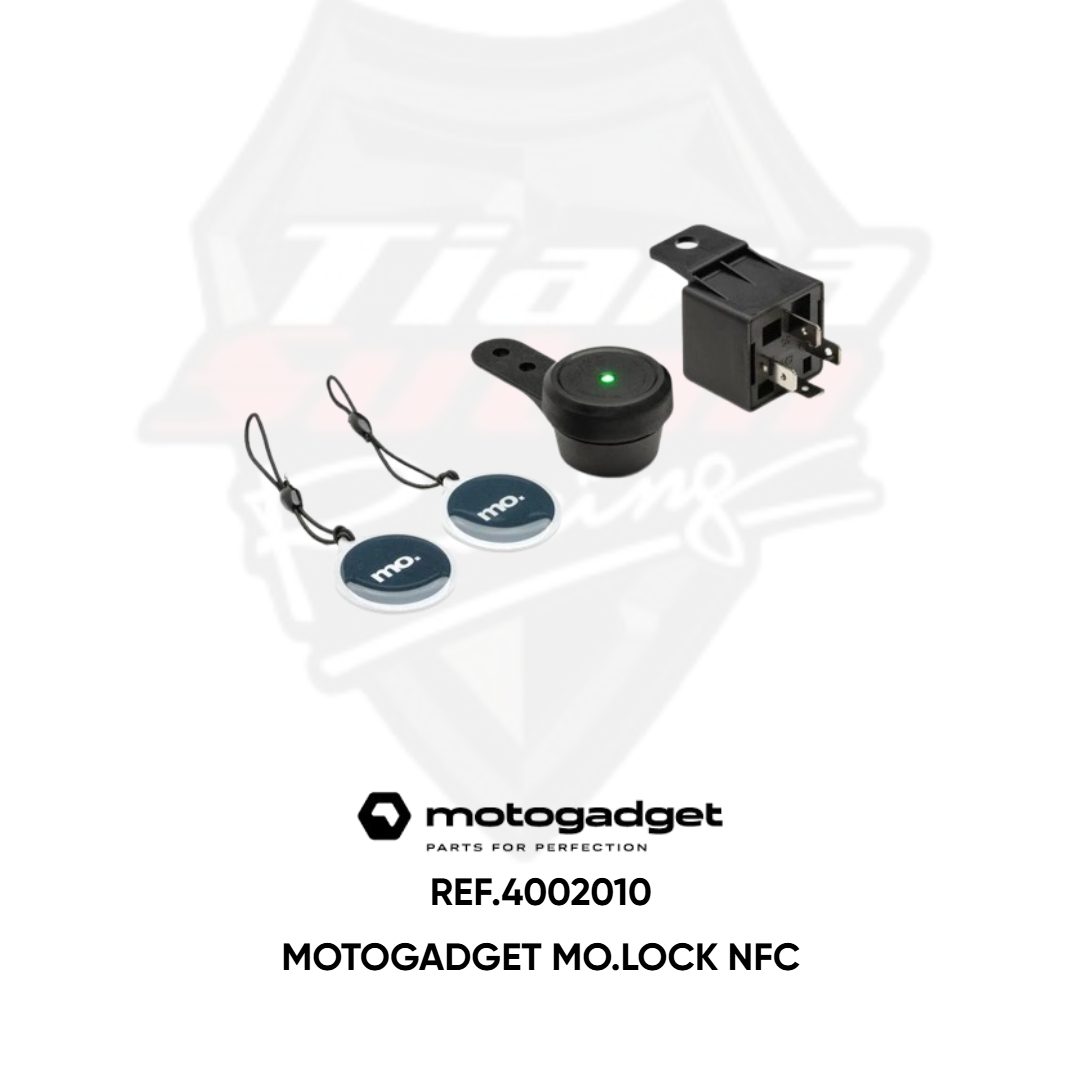

The mo.lock NFC is a contactless, digital ignition lock that replaces mechanical ignition locks and their electrical switching function.
The battery-free key switches the ignition on or off contact-free when approaching the mo.lock at a switching distance of 40 mm.
The mo.lock NFC is based on “Near-Field-Communication” technology and is therefore tamper-proof, unlike radio remote controls. Each key is unique due to its digital code.
Only the right key can operate the mo.lock. Neither the key nor the mo.lock can wear out mechanically. The mo.lock switches a vehicle relay that can handle up to 40A – sufficient for any vehicle electrical system.
The hidden installation of the small mo.lock behind non-metallic parts, e.g. a plastic side cover, enables the complete removal of the mechanical ignition lock. A clean look and design freedom are guaranteed. Ideal options especially for custom bikes.
The two keys supplied are the size of a key fob and can be used to switch the on-board voltage or to teach in new keys. A maximum of 125 keys can be programmed on one mo.lock NFC. Additional keys are available from us.
The LED on the front of the mo.lock uses different colors to indicate the switching status. To protect the vehicle battery, the quiescent current is only 3.2 mA when switched off and is reduced to 1.5 mA after 16 hours and to 0.75 mA after a further 8 days.
We do not recommend using the mo.lock in conjunction with an immobilizer. Please ask your dealer whether the immobilizer can be deactivated.
can be deactivated.
Advantages
NFC technology is tamper-proof
Each key has a unique code
The key switches the mo.lock NFC contactlessly and the entire vehicle electrical system via the relay
The key and mo.lock are not subject to mechanical wear
the keys do not require a battery and therefore cannot fail
No overloading or scorching of contacts possible due to indirect switching via 40A load relay
The mo.lock NFC is very small and can be concealed in many places
The mo.lock NFC is overmolded with a non-flammable duroplast and is therefore 100% water and vibration resistant (IP69)
Keys are attractively small (30mm diameter) and light (2gr.)
Additional keys can be purchased and programmed at a later date
The 40 mm switching distance ensures contactless, convenient switching on and off, but prevents unintentional actuation
A colored LED indicates the status of the mo.lock NFC
To protect the vehicle battery, the mo.lock NFC automatically reduces the quiescent current in 3 stages when not in use
