Description
Data is exchanged from the breakout box to the instrument via a single cable. The breakout box is waterproof (IP69) and insensitive to vibration.
Dimensions type A: 28 x 39 x 10 mm
Dimensions type B: 28 x 53 x 10 mm

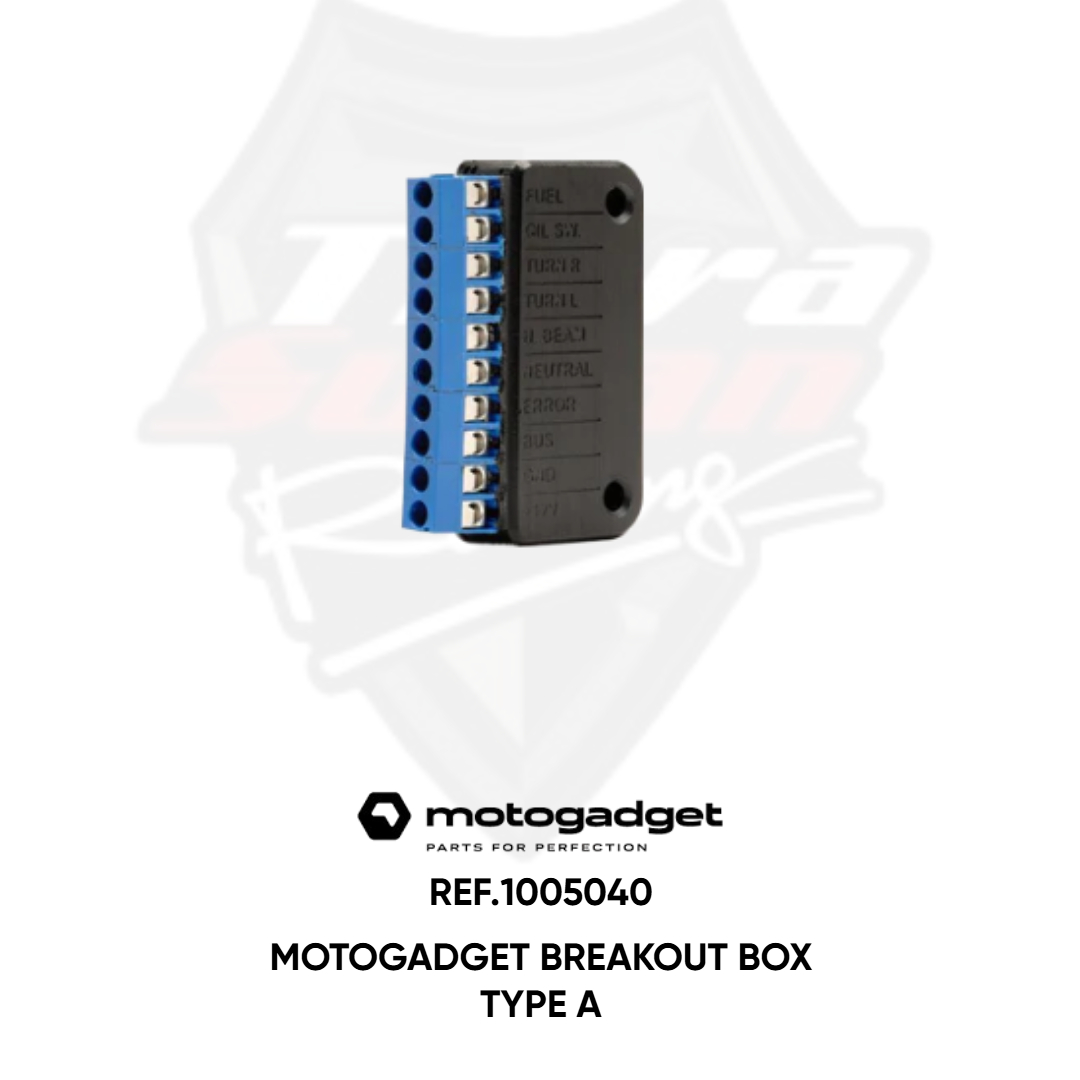

Breakout box A
Tank content/reserve
Oil pressure switch
Blinker right
Turn signal left
High beam
Neutral
Motor warning light
Breakout box B
Tank content/reserve
Oil pressure switch
Blinker right
Turn signal left
High beam
Neutral
Motor warning light
Oil temperature sensor
Water temperature sensor
Air temperature sensor
Oil pressure sensor
